Signs a Building Needs Structural Reinforcement — and When to Call an Engineer

A hairline crack over a doorway rarely means anything. A stair-step crack running through a foundation wall, a floor that visibly slopes toward one corner of a room, or a door that has started sticking in its frame for no obvious reason are a different story. Most owners and property managers see these signs many times before they act on them, usually because it is hard to tell, from a photo or a quick look, whether a defect is cosmetic or structural. This article walks through the warning signs that matter, how they differ from ordinary cosmetic wear, and the point at which it makes sense to stop watching a crack and start a conversation with a structural engineer.

Building Reinforcement · 8 July 2026

Why cracks and settlement happen in the first place

Every building moves. Concrete cures and shrinks for months after it is poured, timber and masonry expand and contract with temperature and humidity, and the soil beneath a foundation compresses unevenly as the structure's weight settles into it. In the first few years after construction, a certain amount of minor cracking and settling is normal and expected, and it is one of the reasons builders distinguish between cosmetic finish cracks and cracks that indicate an ongoing structural issue.

Problems tend to develop when one of a few underlying conditions is present:

• Uneven or inadequate foundation support, often linked to variable soil composition, poor compaction before construction, or a rising or falling water table.
• Water intrusion around the foundation or roof that gradually erodes soil, corrodes reinforcement, or saturates materials that were never designed to stay wet.
• Additions, renovations, or changes in use that add load a structure was not originally designed to carry.
• Age-related deterioration of structural materials, including corrosion of embedded steel reinforcement and long-term fatigue in load-bearing elements.
• Seismic or other sudden events that stress a structure beyond its normal working range, even when the visible damage looks minor at first.

None of these causes are unique to one country or building code. They apply to residential, commercial, and public buildings across very different regulatory environments, which is why the warning signs below are described in general terms rather than tied to a specific jurisdiction's building code, such as the national implementations of Eurocode 8 (EN 1998) across Europe.

Cosmetic cracks vs. structural cracks: how to tell the difference

The single most common question owners ask is some version of "is this crack normal?" There is no way to answer that with total certainty from a photo alone, but a few characteristics reliably separate low-risk cosmetic cracks from cracks that deserve closer attention.

Signs that usually point to a cosmetic crack

• Thin, hairline width, generally under about 1–2 mm.
• Confined to plaster, paint, drywall joints, or a finish coat rather than the structural material underneath.
• Straight, uniform, and not growing in width or length over time.
• Appears in a predictable location, such as above a door or window opening, along a drywall seam, or where two different materials meet.

Signs that point toward a structural crack

• Wider than roughly 3–5 mm, or visibly widening at one end (a "stair-step" or tapered crack).
• Diagonal or stair-stepped through masonry or block, rather than running in a straight vertical or horizontal line.
• Present on both the interior and exterior of the same wall, in roughly the same location.
• Accompanied by other symptoms — a door that no longer closes properly, a gap opening between a wall and ceiling, or visible displacement where two building elements meet.
• Recurs after being patched or repainted, or continues to grow month over month.

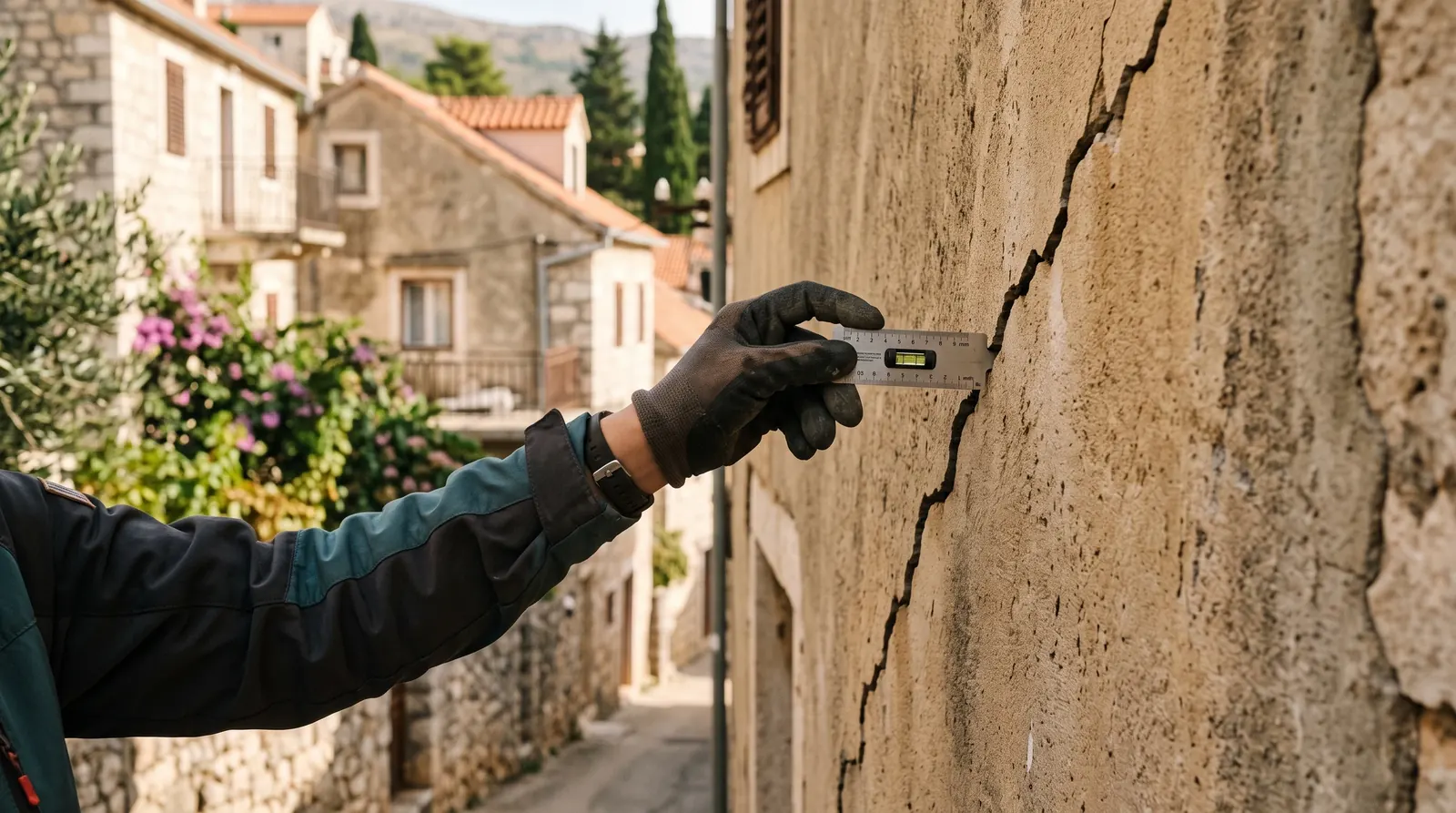

The distinction between structural cracks vs cosmetic cracks is ultimately about pattern and behavior over time, not appearance at a single moment. A width measurement taken once tells you very little; the same measurement taken monthly, with a date and a ruler in the photo, tells you whether the crack is active or dormant.

Wall, ceiling, and foundation crack patterns that signal a real problem

Different crack orientations tend to correspond to different underlying mechanisms, which is part of why a professional assessment matters more than a general rule of thumb.

Diagonal cracks

Diagonal cracks running from a corner of a door or window opening toward a corner of the wall are one of the most recognized foundation settlement warning signs. They typically indicate that one section of the foundation has settled more than the section next to it, putting the wall above into a twisting or shearing stress it was not designed for.

Horizontal cracks in foundation or basement walls

A horizontal crack running along a foundation or retaining wall, especially one paired with inward bowing of the wall, often points to lateral soil or hydrostatic pressure pushing against the wall from outside. This pattern is generally considered higher-risk than a vertical crack of similar width because it suggests the wall is being pushed out of plane rather than simply shrinking.

Stair-step cracks in masonry or block

Cracks that zig-zag along the mortar joints of brick or block work, rather than cutting straight through the units, are a classic sign of differential settlement — one part of the foundation moving down (or up) relative to another.

Ceiling and floor-slab cracks

A crack running across a ceiling, particularly one that connects to a wall crack or is accompanied by sagging, can indicate a problem in the floor or roof structure above rather than simple drywall shrinkage. Cracks in a concrete floor slab that are wide, that continue to open, or that come with an uneven or springy feel underfoot deserve the same scrutiny as wall cracks.

In all of these cases, the deciding factor is rarely the crack alone — it is the crack in combination with its width, its growth over time, and whether it lines up with other symptoms elsewhere in the building.

Sloping floors, sticking doors, and other non-crack warning signs

Structural problems do not always show up as a crack you can point to. Some of the most reliable early indicators are things owners notice in daily use of the building long before any visible crack appears.

• Sticking doors and windows structural cause: a door or window that used to open and close smoothly and now binds, especially if several doors on the same side of a building are affected at the same time, often means the frame around them has racked slightly out of square — a common early sign of foundation movement.
• Sloping or uneven floors: a marble or ball that consistently rolls toward one side of a room, or a visibly uneven floor line along a long wall, suggests the floor structure or the foundation beneath it is settling unevenly.
• Gaps opening up: a widening gap between a wall and the ceiling, between a staircase and the wall it runs alongside, or around window and door trim, indicates the building is shifting relative to fixed elements like stairs or built-in cabinetry.
• Bulging or leaning walls: a wall that is visibly out of plumb, or that bulges outward when sighted along its length, is generally treated as a higher-priority sign than cracking alone.
• Detached or separating chimneys and porches: exterior elements that are structurally separate from the main foundation often settle at a different rate, and a growing gap where they meet the main structure is a useful early warning.
• Persistent damp, musty odors, or efflorescence on foundation walls: while not structural in themselves, these are signs of water intrusion, which is one of the leading contributors to foundation deterioration over time.

None of these signs, on its own, proves there is a structural problem. Taken together, especially when two or more appear in the same part of a building, they are a reasonable basis for requesting a professional inspection.

Settlement vs. sudden structural damage: different risk levels

It is worth separating two very different situations that both fall under "structural warning signs."

Gradual settlement develops over months or years. Cracks widen slowly, doors drift out of alignment gradually, and floors slope a little more each season. This process is usually — though not always — manageable on a planned timeline: document the changes, get an inspection, and act on the engineer's recommendation within a reasonable window.

Sudden structural damage is a different category entirely. This includes damage following an earthquake, a flood, a nearby excavation, a vehicle impact, or a fire, as well as any case where a crack appears or widens dramatically over days rather than months, a wall visibly shifts, or part of a ceiling or floor sags suddenly. In these situations, the building should be evaluated urgently, and in obvious cases of visible instability, occupants should leave the area and treat it as an emergency rather than waiting for a scheduled inspection. Buildings in seismically active regions carry an additional reason to take sudden post-event cracking seriously, since a structure that looks intact after a moderate earthquake can still have hidden damage to its load-bearing elements; our seismic retrofitting page goes into more detail on assessing and reinforcing buildings for seismic risk specifically.

What a structural engineer actually checks during an inspection

A proper structural assessment goes well beyond looking at the cracks that prompted the call. A typical inspection includes:

• Documentation of every crack and defect — location, width, direction, and whether it passes through structural material or only a finish layer.
• Foundation review, including visible portions of footings and foundation walls, drainage conditions around the building, and signs of water intrusion.
• Load path assessment — tracing how loads travel from the roof and floors down through walls or columns to the foundation, checking for any point where that path has been interrupted (for example, by a removed wall or an added opening).
• Material condition checks, such as corrosion in exposed reinforcement, deterioration in timber elements, or spalling concrete.
• Level and plumb readings across floors and walls to quantify how much a building has moved and, where prior data exists, whether that movement is still active.
• Review of any available drawings or previous reports, and comparison against current conditions.
• Monitoring recommendations where movement appears to be ongoing but not yet critical — typically crack gauges or periodic re-measurement over a defined period before a repair decision is finalized.

The output of this process is usually a written report that classifies the severity of what was found and recommends either monitoring, a specific reinforcement approach, or, in rare cases, immediate protective measures.

Common reinforcement solutions once a problem is confirmed

The right structural crack repair options depend entirely on what the inspection finds — there is no single fix that applies to every case. Broadly, confirmed problems are addressed through some combination of the following:

• Foundation underpinning or stabilization, used when a foundation itself has lost adequate bearing capacity and needs additional support transferred to more stable soil or deeper bearing strata.
• Crack injection and sealing, typically epoxy or polyurethane-based, used once movement has been confirmed as stopped or controlled, both to restore structural continuity and to stop water ingress through the crack.
• Carbon fiber or fiber-reinforced polymer strengthening, applied to walls, beams, or slabs that need additional tensile or shear capacity without the bulk of traditional concrete jacketing.
• Steel or concrete jacketing of columns and beams, used where a structural element's overall capacity needs to increase, not just its surface condition.
• Drainage and waterproofing corrections, addressed alongside any structural repair when water intrusion is a contributing cause, since repairing a crack without fixing the water source that caused it typically leads to recurrence.
• Seismic strengthening measures, applied where a structure's overall lateral resistance needs improvement rather than a single localized repair.

Reinforcement cost and the expected extension to a building's service life vary widely with the extent of damage, construction type, and site access: minor localized repairs sit toward the lower end of the range, while foundation-level intervention or building-wide seismic strengthening sit toward the higher end. For a project-specific figure, our How We Price page explains the factors behind an estimate. Percentages and timeframes on these pages (e.g., energy savings, value increase, expected lifespan) are typical industry ranges; actual results vary by building, existing condition, and scope of work, and do not constitute a guarantee. General information on reinforcement approaches is available on our building reinforcement page.

When to stop waiting and call a professional now

Most crack-related questions are not emergencies, but a handful of specific situations warrant an urgent call rather than a wait-and-see approach:

• A crack wider than roughly 5 mm, or one that is visibly growing week to week rather than staying static.
• Any crack accompanied by a door or window that has suddenly stopped closing, a visibly sloping floor, or a wall that is out of plumb.
• Horizontal cracking or bowing in a foundation or basement wall.
• Any sudden change following an earthquake, flood, nearby excavation, heavy vehicle impact, or fire, even if the visible damage looks minor.
• Visible sagging in a ceiling or floor, or a floor that feels notably springy or uneven underfoot.
• Cracking that runs through both the interior and exterior faces of the same wall at the same location.

None of these signs guarantee a serious structural problem, and in many cases an inspection concludes that ongoing monitoring, rather than immediate reinforcement, is the appropriate next step. But the cost of a professional assessment is small compared to the cost of a structural problem left unaddressed, and an engineer's report is the only reliable way to move from "this might be nothing" to an actual, documented answer. If any of the signs above sound familiar, the most useful next step is a proper site inspection rather than another few months of watching and wondering.
